86mm BRUSHLESS DC MOTOR

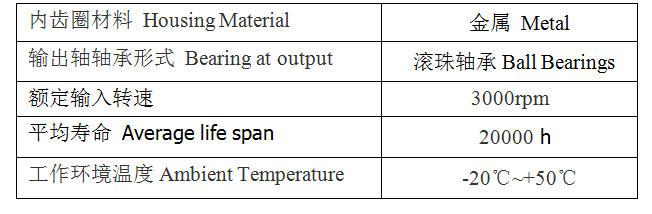

行星减速机常规参数

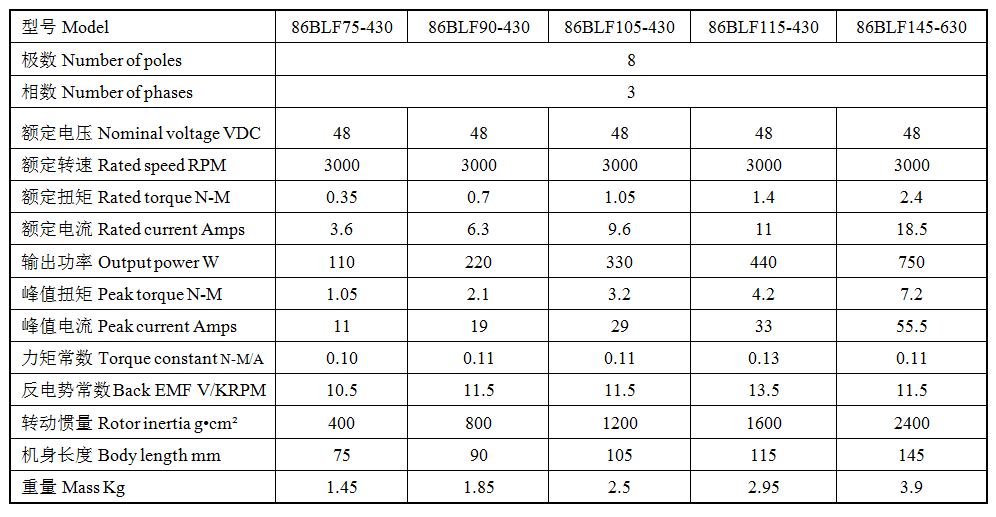

技术数据Electrical Specifications

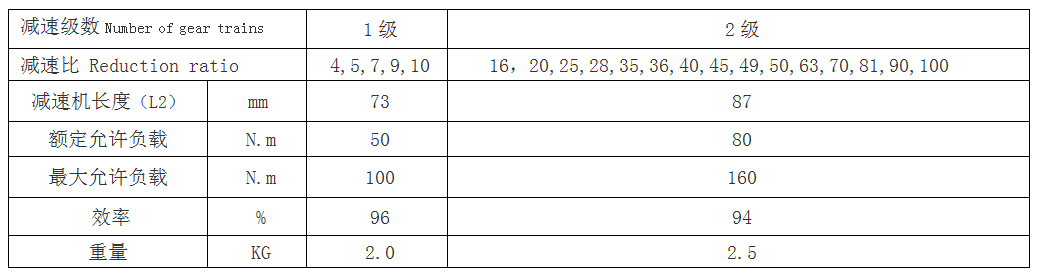

PL86行星减速机技术参数PLANET GEAR Electrical Specifications

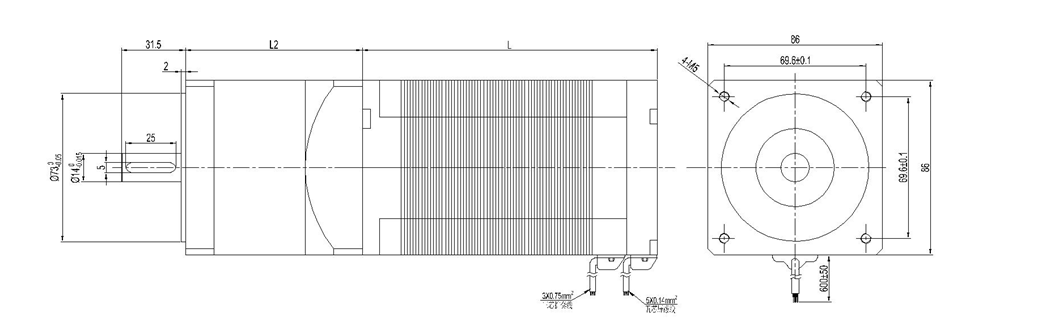

电机机械尺寸Dimensions unit=mm

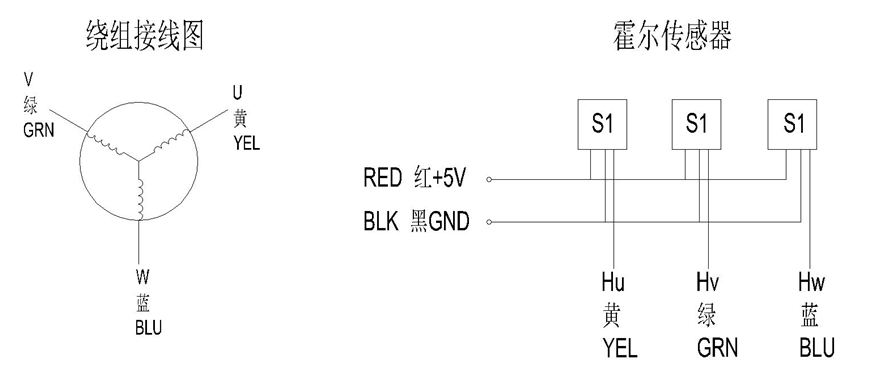

电机接线图Wiring Diagram

we can customize according to your requirements
